This is a brand new machine with full CE certification – UK installation is included in the price with training and support (12 month warranty)

We also supply the material (spun bond, melt blown and nose bridge wire)

Finance is available from 2-5 years.

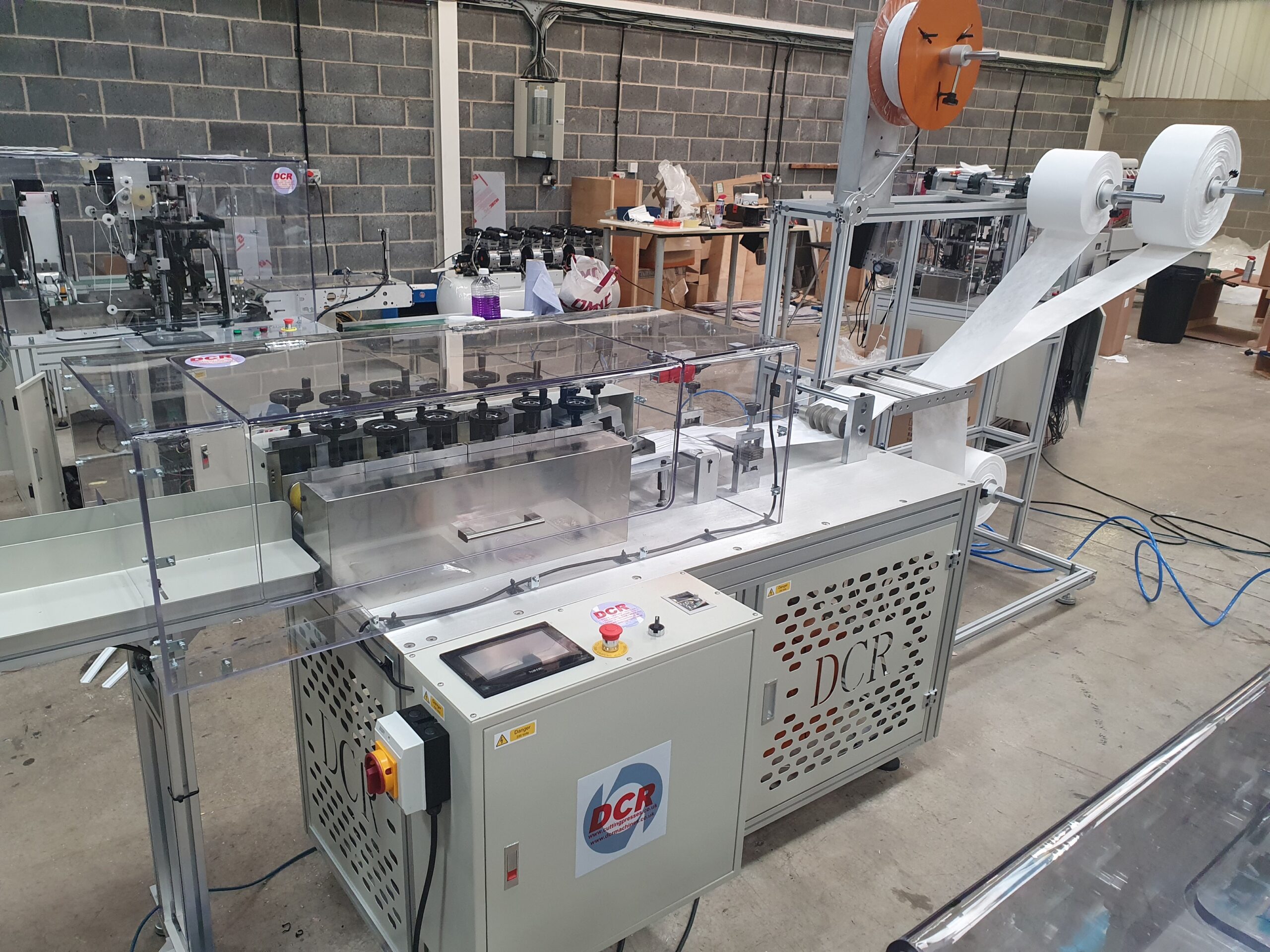

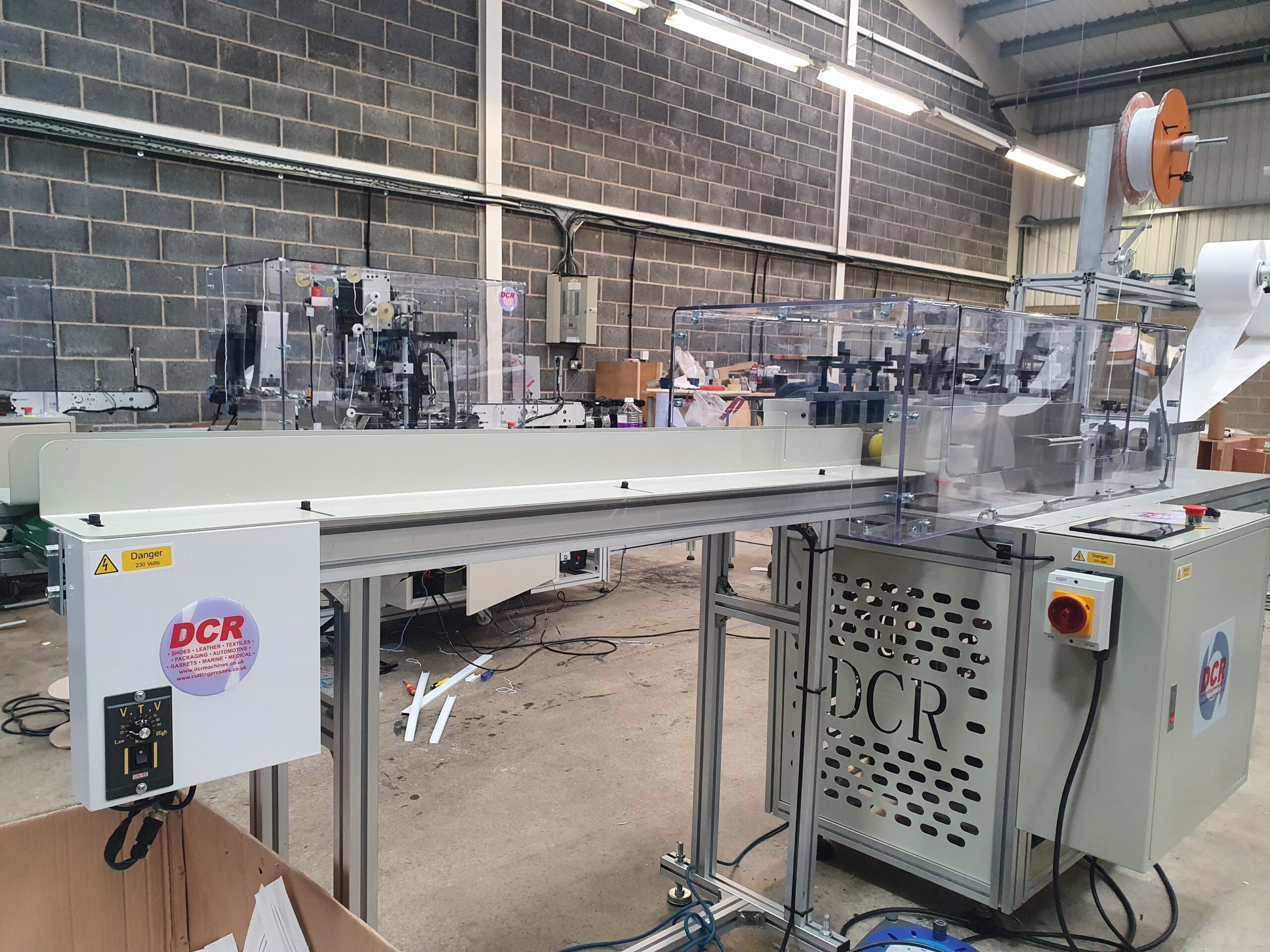

Automatic mask production line for PPE flat mask

Production capacity MAX 450 masks per minute

The machine will collate and weld using ultrasonic welding in 2 stages using 2 ultrasonic modules.

Mask dimensions – Top layer spun bond 175mm, middle layer melt blown 175mm, cover layer spun bond 195mm

Nose bridge is 3mm

Mask body making area with feed in area. Three cloth rolls, with 2 non-woven rolls and 1 filter paper roll. A reel for the bridge of the nose along with the Mask body welding area.

The mask body is welded on both sides (lengthwise), using ultrasonic welding, then passes through another ultrasonic welder to cross weld.

The nose bridge is conveyed at the same time as welding on both sides. After welding on both sides in the length direction the machine will perform intermediate welding in the width direction and cut the mask to size.

The machine can used in conjunction with the automatic , semi auto finishing machines and can also be supplied with optional packaging machine

Material used is PP Non woven composite fibre plus melt blown

3 layers with automatic welding controlled by touchscreen operation

220v – single phase – 10Kw

We can also supply the PPE mask making material
